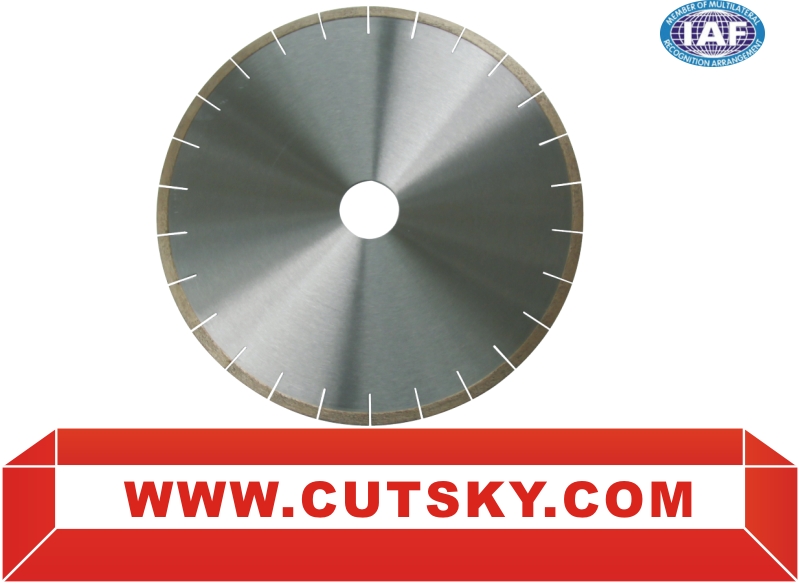

WB3028(Marble Blade)

Welded Diamond Blade

Place of Origin: Henan, China (Mainland) Brand Name: cutsky Model Number:WB3028 Type: Saw Blade Blade Material: Manganese steel Finishing: Nitride Size: 10''-32'' Application: marble, granite,concrete

We are here to help:Easy ways to get the answers you need.

Overview

 DESCRIPTION OF GOODS

1.Saw blade use high quality blank.

2.Diamond segment use high quality emery and special mixture.

3.Our Saw blade is very sharp, high efficiency and stable performance.

3.fast cutting speed without chipping.

4.The segment welding way is silver soldering.makes it more firmly on the blank.

5.Mature production process.

7.Strict product quality inspection processes.

8.Rapid delivery process.



 SPECIFICATION



Dia.

Segment Dimension
L × W × H

Steel Core Thickness

Segment No.

300mm

40×3.0/3.2×10/12/15

3.2

21

350mm

40×3.2/3.4×10/12/15

3.4

24

400mm

40×3.4/3.6×10/12/15

                     3.6

28

450mm

40×4.0×10/12/15

3.8

32

500mm

40×4.0×10/12/15

4.0

36

600mm

40×4.6×10/12/15

4.6

42

750mm

40×5.0x10/12/15

5.2

54

800mm

40*5.5*10/12/15

5.5

57



 Other specifications are available upon your request.
