Vacuum Brazed Diamond Saw Blade

Place of Origin: Henan, China (Mainland) Brand Name: cutsky Model Number: VB2024 Blade Material: Manganese steel

We are here to help:Easy ways to get the answers you need.

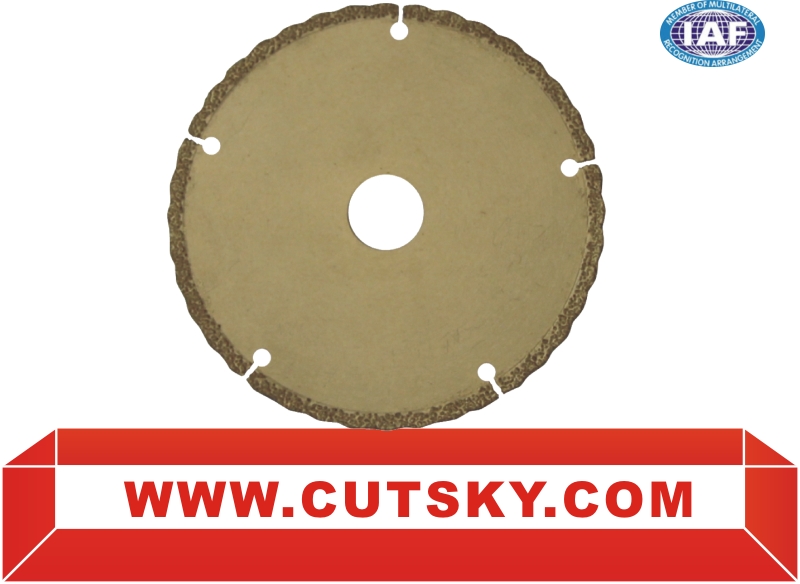

 Vacuum brazed saw blade

 Features :

1. High degree of exposed diamond grains

2. Sharp cutting

3.Energy-conservation and environment -friendliness.


Product description
1.  Application for cutting concrete, steel, iron, brick, block, masonry and stone
2.  Aopt the technology of vacuum brazing diamond,  improving work efficiency and lengthening lifetime,  it's a better position to save energy.
3.General purpose cutting with fast speed
4.Normal size from dia.12" to 20" color and size available as required.

Outer diameter Arbor size segment diamension
12"(300mm) 1"(25.4mm) 40*3.2*10
14"(350mm) 1"(25.4mm) 40*3.2*10
16"(400mm) 1"(25.4mm) 40*3.6*10
18"(450mm) 1"(25.4mm) 40*3.8*10
20"(500mm) 1"(25.4mm) 1"(25.4mm)


1, Use for cutting and grinding ordinary flat glass, frosted glass, sandblasted glass, embossed glass, wired glass, hollow glass, laminated glass and glass block, diamond grit 80 -120. Cutting fast; the blade edge is not easy to be broken.
2, Use for cutting and grinding granite, basalt, limestone, dolomite, sandstone, marble and other stone, diamond grit 36- 60. Cutting fast; the blade edge is not easy to be broken.
3, Use for cutting and grinding porcelain, wall brick and floor tile, sanitary ware, ceramic handle, silicate products and silicon wafer, diamond grit 36-60. Cutting fast; the blade edge is not easy to be broken.
4, Used for cutting and polishing of other metal products, such as aluminum, stainless steel, etc.
