LB3020(General Purpose Blade)

Laser Diamond Blade

Place of Origin: Henan, China (Mainland) Brand Name: cutsky Model Number: LB3020 Type: Saw Blade Blade Material: Manganese steel Finishing: Nitride Size: 4"-14" Application: marble, granite, concrete

We are here to help:Easy ways to get the answers you need.

Overview

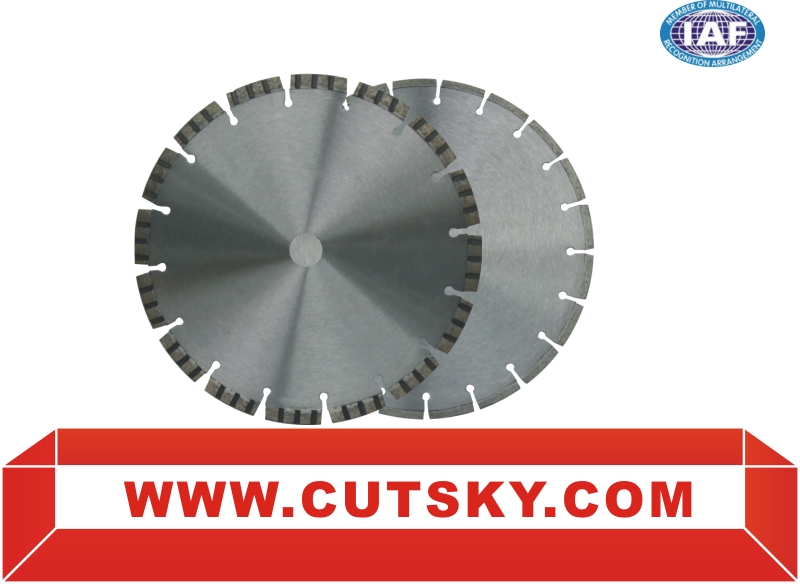

General Purpose Blade

DESCRIPTION

General Purpose Blade are professionally designed for cutting hard non-metallic material such as concrete, cured concrete, concrete products, concrete slabs and pipes, etc., also for cutting reinforced concrete such as Road, Bridge, etc.



FEATURE

1. For cured concrete and reinforced concrete with key slot and special designed drop segments for under-cut protection.
2. Different bonds available for machines ranging from 20HP to over 65HP and concrete with various hardness, ideal for professional users.



SPECIFICATION

DIAMETER

SEGMENT DIMENSIONS

ARBOR



THICK

HIGH



12" (300mm)

3.2mm-5.4mm

12mm

1" -20mm

14" (350mm)

3.2mm-5.4mm

12mm

1" -20mm

16" (400mm)

3.2mm-5.4mm

12mm

1" -20mm

18" (450mm)

3.2mm-5.4mm

12mm

1" -20mm

20" (500mm)

3.2mm-4.8mm

12mm

1" -20mm

24" (600mm)

3.2mm-4.8mm

12mm

1" -20mm

26" (650mm)

3.6mm-4.8mm

12mm

1" -20mm

30" (750mm)

4.0mm-5.4mm

12mm

1" -20mm

36" (900mm)

4.0mm-5.4mm

12mm

1" -20mm

Other specifications are also available.
