Diamond Segment

Place of Origin: henan, China (Mainland) Brand Name: cutsky Type: Power Tool Parts Raw Material: Diamond. metal powder, etc Application: Multiblade Segment Shape: M, K, Taper, Sandwich... Size: 900mm-4200mm Manutacturing Arts: Sinter Weldin

We are here to help:Easy ways to get the answers you need.

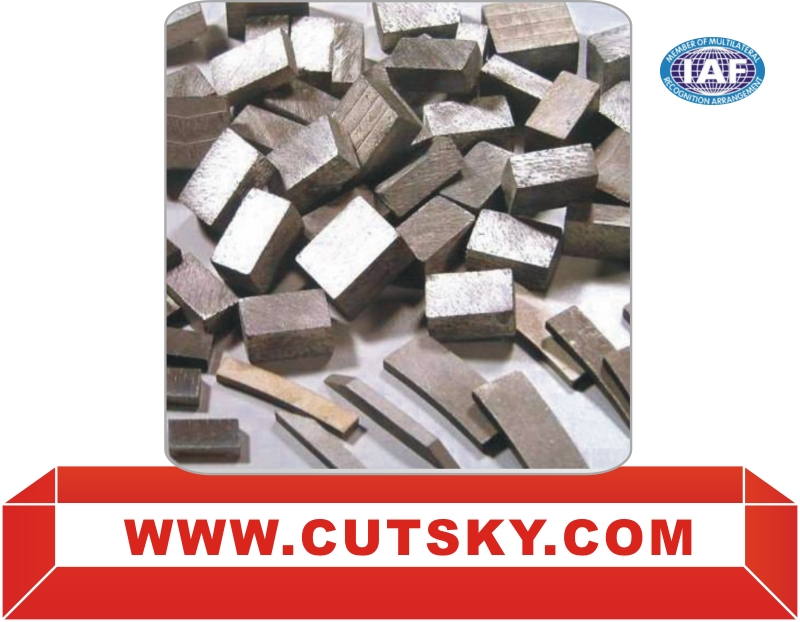

Diamond Segments
Structure:
Diamond segments consist of small-size diamonds and metal bond materials, the metal bond materials may include the powders of Cu, Sn, Fe, Ag, Co, Ni, WC, Mo, etc.
Forms:M shape, K shape, Taper shape, Flat shape, T shape, U shape, etc.
Use:Cutting Granite, Marble, Sandstone, Limestone, Basalt, Concrete, etc.
Our diamond segments' advantage:
1. High percent of bond materials
2. High grade of diamonds
3. Over 15 years experence with hundreds of formula against different stones
4. Good sharpness, stable performance, long lifespan
5. Strict quality control
6. Keep 40-50 precent market share in China, Already acquired the customers' approval

Product Description

Specification:

Segments for 300-800mm diamond saw blade
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
300	12"	2.0/2.2	40	2.8/3.0	8/10/12/15	21
350	14"	2.2/2.4	40	3.0/3.2	8/10/12/15	24
400	16"	2.6/2.8	40	3.4/3.6	8/10/12/15	28
450	18"	2.8/3.0	40	4.0/4.2	8/10/12/15	32
500	20"	2.8/3.0	40	4.0/4.2	8/10/12/15	36
600	24"	3.6	40	4.6	8/10/12	42
700	28"	4	40	5.2	8/10/12	42
800	32"	4.5	40	6.0	8/10/12	46/57
Segments for 900-3500mm single/multi blades
Diameter		Core Thickness (mm)	Segment Dimension (mm)			No. of Teeth
mm	inch	Core Thickness (mm)	Length	Thickness	Height	No. of Teeth
900	36"	5	22/24	6.0/6.6	12/13/15	64
1000	40"	5.5	22/24	6.4/7.0	12/13/15	70
1200	48"	6	22/24	7.4/8.0	12/13/15	80
1400	55"	6.5	22/24	7.8/8.4	12/13/15	92
1600	64"	7.2	22/24	8.4/9.0	12/13/15	108
1800	72"	8	22/24	9.2/9.8	12/13/15/20	120
2000	80"	8	22/24	9.5/10.5	12/13/15/20	128
2200	88"	9	22/24	10.5/11.5	12/13/15/20	132
2500	110"	9	22/24	11.5/12.5	12/13/15/20	140
3000	120"	10	22/24	12.5/13.5	12/13/15/20	160
3500	140"	10	22/24	13.5/14.5	12/13/15/20	180

*Other specifications are available upon request.
